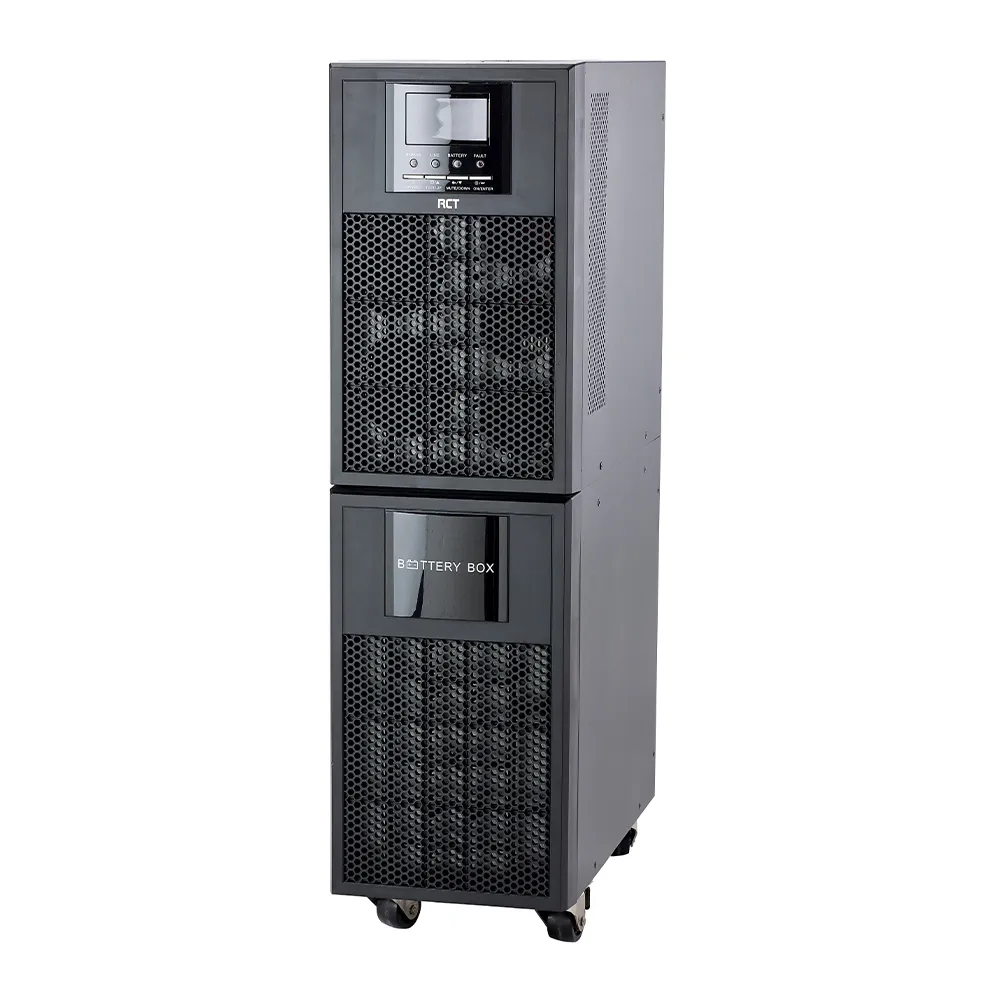

Mecer ME-6000-WPTU UPS 6KVA Pro Online Smart Tower UPS

Description

Mecer UPS 6KVA Pro

Mecer UPS 6KVA Pro

• Capacity: 6000 VA / 4800 W
• Frequency Range: 46~54 Hz or 56-64 Hz
• Battery Type: 12 V / 9 Ah
• Pure Sinewave
• Requires professional installation to electrical distribution board

• Phase Single phase with ground
• Capacity 6000 VA / 4800 W
• Input Voltage Range Low Line Transfer 176 VAC ± 3% @ 100% load, 110 VAC ± 3% 50% load
• Low Line Comeback 186 VAC ± 3% @ 100% load, 120 VAC ± 3% @ 50% load
• High Line Transfer 300 VAC ± 3%
• High Line Comeback 290 VAC ± 3%
• Frequency Range 46~54 Hz or 56-64 Hz
• Power Factor ? 0.99 @ 100% load
• Output Output Voltage 208/220/230/240 VAC
• AC Voltage Regulation (Batt. Mode) ± 1%
• Frequency Range (Synchronized Range) 46 ~ 54 Hz or 56 ~ 64 Hz
• Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
• Current Crest Ratio 3:1 Harmonic Distortion ? 3 % THD (Linear Load), ? 5 % THD (non-linear load)
• Transfer Time AC Mode to Batt. Mode Zero
• Inverter to Bypass Zero
• Waveform (Batt. Mode) Pure Sinewave
• Efficiency AC Mode 92%
• Battery Mode 90%
• Battery Battery Type 12 V / 9 Ah
• Numbers 16
• Typical Recharge Time 9 hours to recover to 90% capacity
• Charging Current (max.) 1.0 A / 2.0 A (adjustable)
• Charging Voltage 218.4 VDC ± 1%
• Indicators LCD Panel UPS status, Load level, Battery level, Input/output Voltage, Discharge timer and Fault Conditions
• Alarm Battery Mode Sounding every 4 seconds
• Low Battery Sounding every second
• Overload Sounding twice every second
• Fault Continuously sounding
• Physical Dimension, D x W x H (mm) 369  x 190 x 668
• Net Weight (kgs) 61
