UBIQUITI NETWORKS UniFi AC In-Wall-UAP-AC-IW

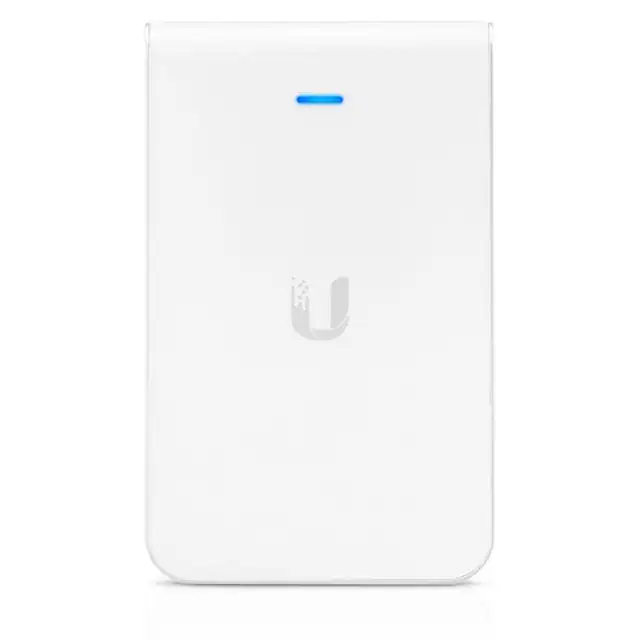

Ubiquiti UniFi AC In-Wall Access Point (UAP-AC-IW)

The Ubiquiti UniFi AC In-Wall (UAP-AC-IW) is a compact 802.11ac dual-band access point designed to replace standard Ethernet wall jacks with high-performance Wi-Fi coverage and integrated wired network access. It is ideal for hotels, offices, and residential deployments, offering both wireless and wired connectivity in a single elegant wall-mounted unit.

Key Features

• Dual-Band 802.11ac Wi-Fi: Up to 1167 Mbps total throughput (300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz).

• 3 Gigabit Ethernet Ports:

  • (1) PoE In + Data

  • (1) PoE Out + Data (requires 802.3at PoE+)

  • (1) Data-only port

• PoE Passthrough: Supports powering an additional 802.3af device such as a UniFi camera or VoIP phone.

• Compact Wall-Mount Design: Fits into a standard 1-gang electrical box for clean, professional installations.

• UniFi Controller Managed: Centralized configuration, monitoring, and analytics with UniFi Network software.

Technical Specifications

Model: UAP-AC-IW
Dimensions: 139.7 × 86.7 × 25.75 mm
Weight: 200 g
Networking Interface: 3 × 10/100/1000 Ethernet ports
Power Method: 802.3at PoE+
PoE Output: 48 V passthrough (pins 1, 2+ and 3, 6-)
Max Power Consumption: 7 W (19 W with PoE passthrough)
Max TX Power:

• 2.4 GHz – 20 dBm

• 5 GHz – 20 dBm
  Antenna Gain:

• 2.4 GHz – 1 dBi

• 5 GHz – 2 dBi
  Wireless Standards: 802.11 a/b/g/n/ac/r/k/v
  Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2 TKIP/AES)
  Concurrent Clients: 250+
  Operating Temperature: –10 to 50 °C
  Humidity: 5 – 95% non-condensing
  Certifications: CE, FCC, IC

Advanced Traffic Management

• VLAN Support (802.1Q)

• Advanced QoS for voice, video, and data prioritization

• Guest Isolation for secure multi-user environments

• WMM Support for media optimization

Ideal Use Cases

• Hospitality rooms and apartments needing discreet Wi-Fi and wired access

• Office workspaces or classrooms with VoIP phones or cameras

• Retrofit installations upgrading from Ethernet jacks to dual-band wireless

Why Choose the UniFi AC In-Wall

• Replaces Ethernet outlets with enterprise-grade Wi-Fi

• Powers downstream devices via PoE+

• Fully managed through the UniFi Controller for unified configuration and monitoring

Available at Peejey Smart Technologies Kenya – trusted distributor for Ubiquiti UniFi Access Points, routers, and professional networking solutions.
