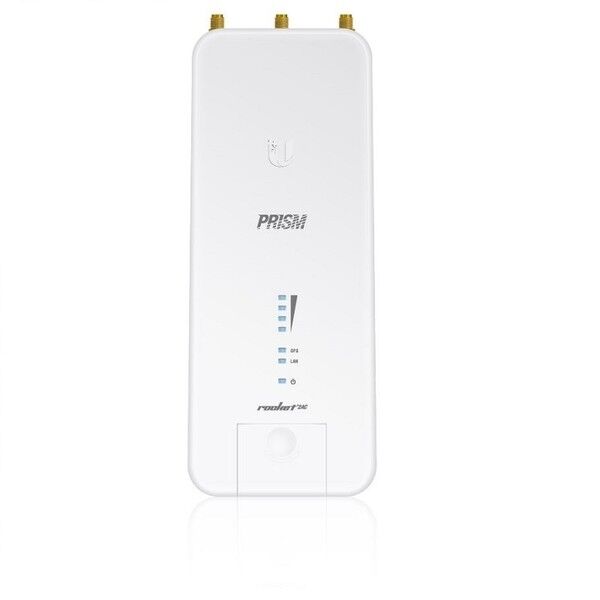

Ubiquiti Rocket R2AC airMAX BaseStation

Description

Ubiquiti Rocket R2AC airMAX

Ubiquiti Rocket R2AC airMAX

• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connectors: (2) RP-SMA (Waterproof), (1) GPS* (Waterproof )
• LEDs: (4) Signal Strength, GPS*, LAN, Power
• Enclosure: Die-Cast Aluminum with White Powder Coating
• Processor: Atheros MIPS 74Kc, 720 MHz
• Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
• Supported Voltage Range: 18-26VDC
• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
• Channel Sizes: 10/20/40 MHz
• ESD/EMP Protection: ± 24 kV Contact / Air for Ethernet
• RoHS Compliance: Yes
• Shock and Vibration: ETSI300-019-1.4
• Modes: Access Point, Station
• Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
• Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
• Distance Adjustment: Dynamic Ack and Ackless Mode
• Power Adjustment: Software Adjustable UI or CLI
• Security: WPA2 AES Only
• QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
• Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
• Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter
• Ubiquiti Specific Features: 10 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
• Dimensions: 3.47 x 1.58 x 9.06″
• Weight: 440 g

• Rocket R2AC-Prism supports Point-to-Point (PtP) backhaul. Just pair the R2AC with Ubiquiti RocketDish antennas to create PtP links easily.
• For Point-to-MultiPoint (PtMP) links just add airMAX sector antennas to create the PtMP links.
• Ubiquiti Rocket R2AC also supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughput than other solutions.
